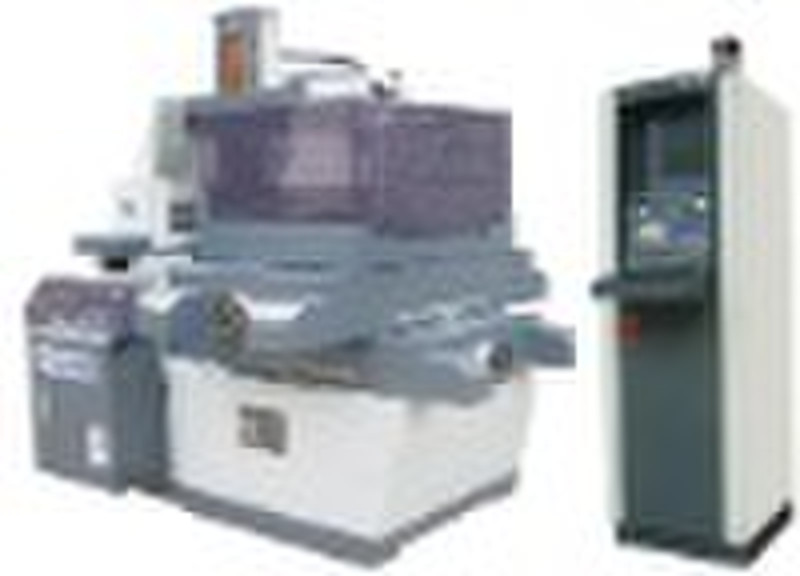

spark erosion

spark erosion DKB400 Main indexes of CNC system Model Function&Parameter GK-5Host computer Industrial PC Programmable storage capacity 80G hard disk Display monitor 17 inch LCD Input device USB, keyboard, cable Working code 3B,4B,ISO Memory 32-128M Language Chinese&English Orbiting style Square/circle Unit Metirc/inch HF working voltage of machine tool 60-120V Controlling shaft style 4 shafts synchronously move Min. control unit 1um Max. control unit 10m Output code 3B,ISO Control code ISO Working current of machine tool 4-6A Width of each pulse 4-120us Shape of working voltage wave form for machine tool Grouping rectangle External Dimension 600×500×1800 Packing Dimension 800×700×1900 Technology Index of Machine Tool General machining accuracy Max. cutting thicknessCutting angle≥0.01mm400mmZ:12°/50mmWorking machining speedRoughnessThreading speed>100(mSqmeters/min)Ra≤1.0um(40mSqmeters/min)0.8 12 m/sThe numeric control misactSingle pulse progress accuracyRepeat positioning accuracy≤0.005 mm≤0.001 mm±0.001 mm Specifications of Machine Tool Model Parameter DKM400BZTable travel400×500 mmWorktable loading400kgTable size(X×Y)910×600mmTravel of Z-axis400 mmMax. machining workpiece size(W×D×H)900×590×400 mmDiameter of electrodeΦ0.18 0.20 mmPower of machine tool1.5kwNet weight1400 kgsPower supply380V/50HZ OR 220V/50HzCapacity of work solution54.375 LWater tank shape size(W×D×H)750×290×300 mmMachine tool shape size(W×D×H)1400×1260×1715 mmMachine tool packing size(W×D×H)1650×1300×2000 mm
