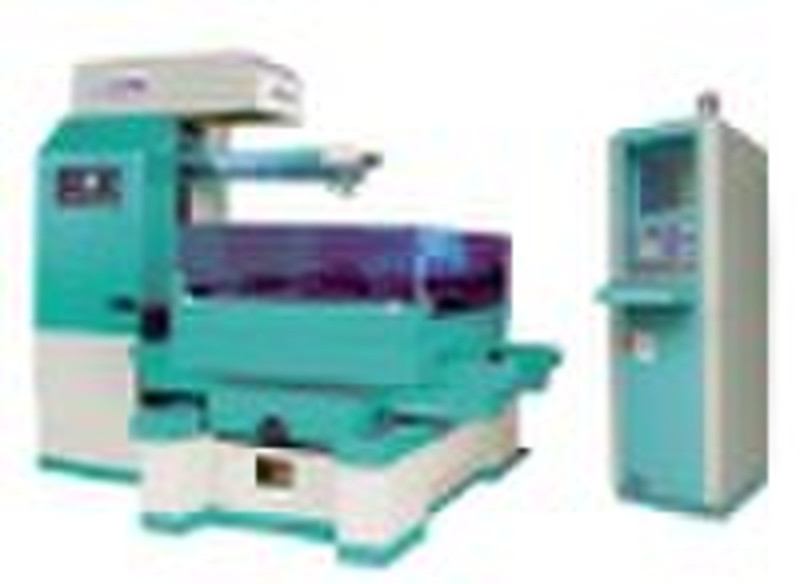

making machine DKM630

making machine PARAMETERS OF CNC SYSTEM Types,Function&Parameters GK-5Host computer Memory Industrial PC 32-128M Program storage capacity 80G hard disk Display modes Display in digital and LCD Input mode Keyboard, U-disk,Communiction Control code 3B,4B Displayed character English,Chinese Interpolation functions Straight line, Circlearc Size mode The metric system Working voltage of high frequency 60-120V Controlling shafts 4 Shafts linkage Min. instruction unit 1um Max.instruction value 10m Output codes Control code 3B, ISO ISO Short circuit current of high frequency 4-6A Pulse width 4-120us Wave shape of high frequency Rectangle, grouping Shape size 600×500×1800 Packing size 800×700×1900 Technology Index of Machine Tool General machining accuracy Max. cutting thicknessCutting angle≥0.01mm400mmD: 30°/50mmWorking machining speedRoughnessThreading speed>100(m/min)Ra≤1.0um(40m/min)0.8 12 m/sThe numeric control misactSingle pulse progress accuracyRepeat positioning accuracy≤0.005 mm≤0.001 mm±0.001 mm Specifications of Machine Tool Model Parameter DKM630Table travel280×350 mm×mmWorktable loading300 kgTable size(X×Y)670×485 mm×mmTravel of Z-axis400 mmMax. machining workpiece size(W×D×H)660×475×400 mm×mm×mmDiameter of electrodeΦ0.18 0.20 mmPower of machine tool2.0kwNet weight1200 kgsPower supply380V/50HZ OR 220V/50HzCapacity of work solution54.375 LWater tank shape size(W×D×H)750×290×300 mm×mm×mmMachine tool shape size(W×D×H)1510×1110×1715 mm×mm×mmMachine tool packing size(W×D×H)1600×1150×2000 mm×mm×mm
