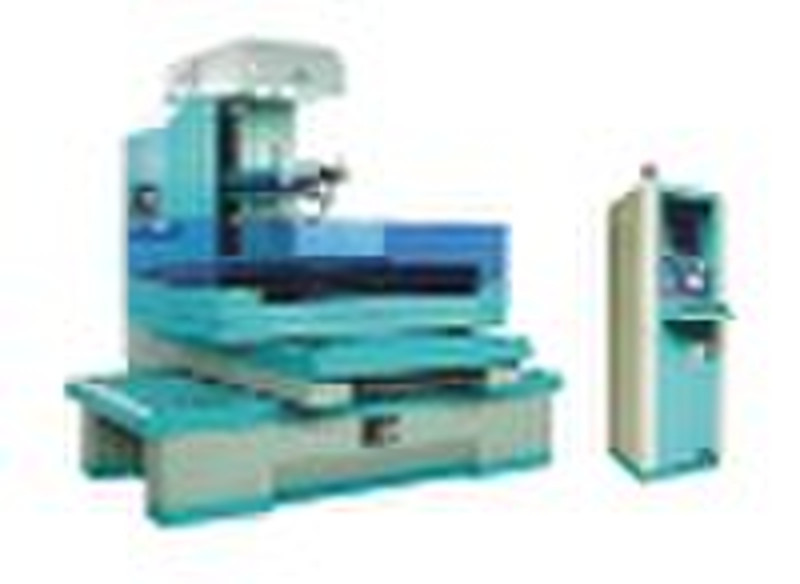

die cut machine DKM800FZ

die cut machine Main indexes of CNC system Model Function&Parameter GK-5Host computer Industrial PC Programmable storage capacity 80G hard disk Display monitor 17 inch LCD Input device USB, keyboard, cable Working code 3B,4B,ISO Memory 32-128M Language Chinese&English Orbiting style Square/circle Unit Metirc/inch HF working voltage of machine tool 60-120V Controlling shaft style 4 shafts synchronously move Min. control unit 1um Max. control unit 10m Output code 3B,ISO Control code ISO Working current of machine tool 4-6A Width of each pulse 4-120us Shape of working voltage wave form for machine tool Grouping rectangle External Dimension 600×500×1800 Packing Dimension 800×700×1900 Main index of Machine tool Accuracy of the Machining USB, keyboard, cable Cutting angleAccuracy of the Machining400mmZ:12°/50mmCutting speedRoughnessLine speed of the turningwire bobbin>100(m/min)Ra≤1.0um(40m/min)0.8 12 m/sReverse gapAdvancingdistanceofeach pulseAccuracy of the repeating position≤0.005 mm≤0.001 mm±0.001 mm The main specification of machine tool Model & Parameter DKM800FZWorktable travel800×1000 mm×mmTable loading2000 kgWork table(X×Y)1410×1010 mm×mmZ-axis travel400 mmMax. work-piece size(W×D×H)1400×1000×400 mm×mm×mmDiameter of the molybdnum wireΦ0.18 0.20 mmThe machine tool power2.0kwNet weight3800 kgsThe power supply380V/50HZ OR 220V/50HzThe capacity of work solution54.375 LWater tank shape(W×D×H)750×290×300 mm×mm×mmExternal Dimension(W×D×H)2400×2200×2320mm×mm×mmPacking Dimension(W×D×H)2450×2400×2500 mm×mm×mm
